Nome da marca: SZMZ
Memória: ? 4GB
Disco Rígido: ? 1.5TB
Número do modelo: B75M-I
Químico Hign-em causa: Nenhum
Processador: intel core i5-3570
Utilização: Família
Origem: CN (Origem)
Tipo: MINI DESKTOP
Marca do Processador: ?ntel

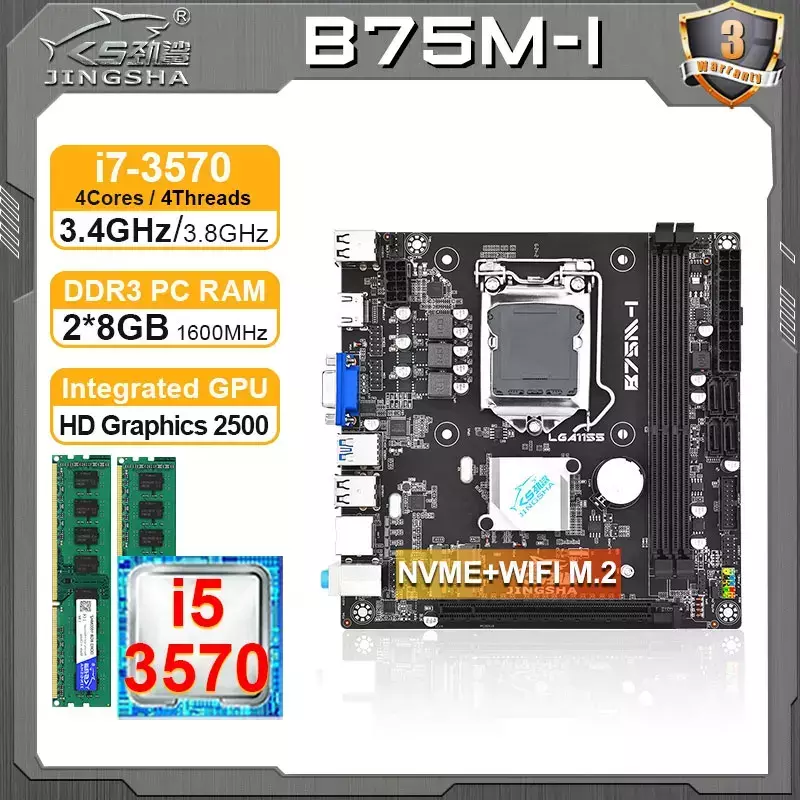

Motherbaord set including : 1*motherboard + 1* Intel Core i5 3570 CPU + 2*8GB DDR3 1600MHz PC RAM
CPU:
Processor Series: Core i5-3570 Processor (4 cores / 4 threads)
Base frequency: 3.40GHz
Max Turbo Frequency: 3.80GHz
Socket type: LGA 1155
Cache: 6 MB
Memory Types : DDR3 1333/1600MHz
Technology: 22nm
TDP: 77W
Processor Graphics: Intel HD Graphics 2500
Note:
1: CPU is used, condition good, 1 year warranty
2: There may have some little physical scratches on the surface of the CPU, this is pretty normal.
3: All CPU are strictly tested by our store
Memory:
Type: DDR3 PC Memory
Frequency: DDR3 1600MHz
Capacity: 16GB (2*8GB)

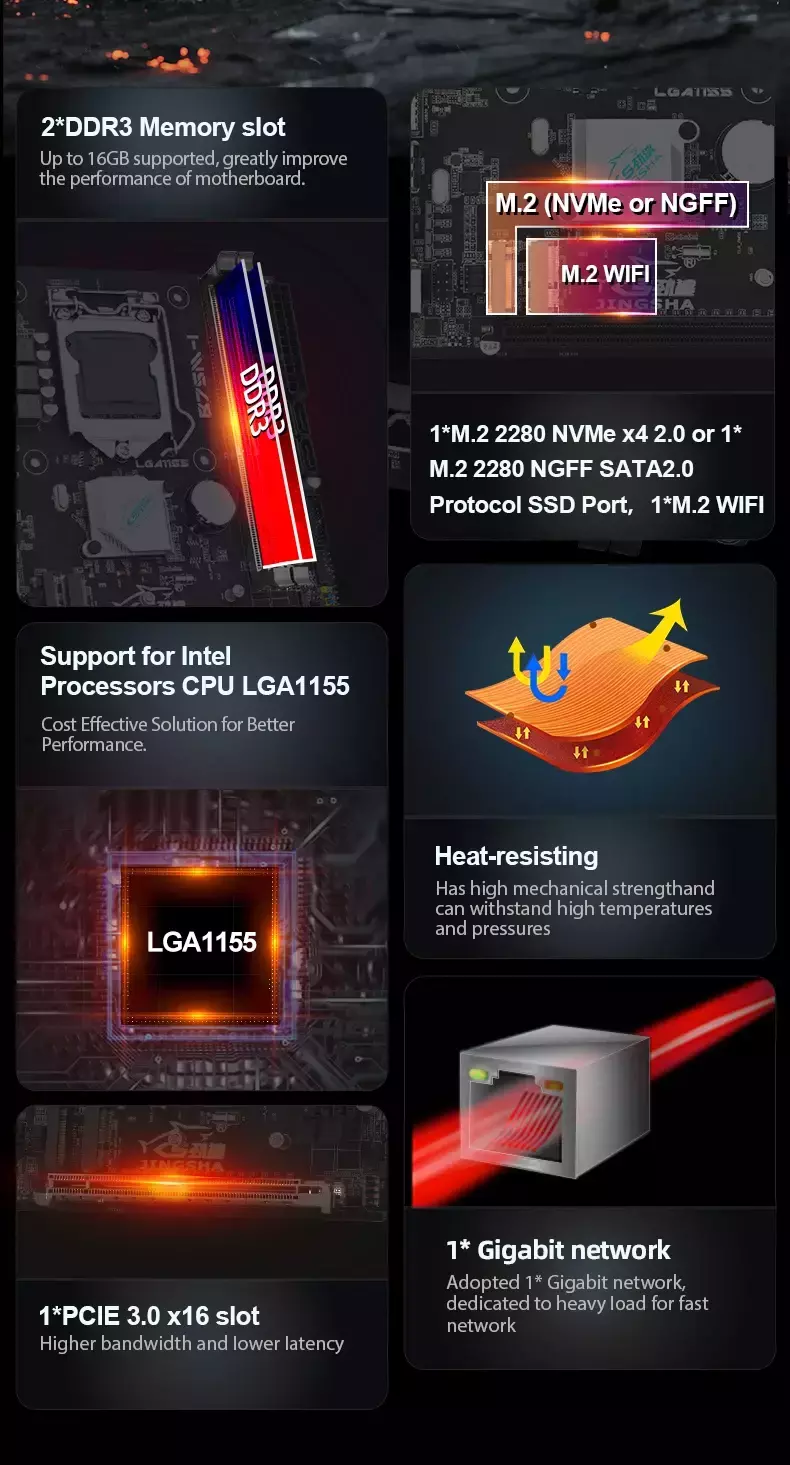

Motherboard Feature:
Support 1000Mbps Gigabit Ethernet .
Support 1*NVME M.2(or NGFF M.2) port, 1*WIFI M.2 port.

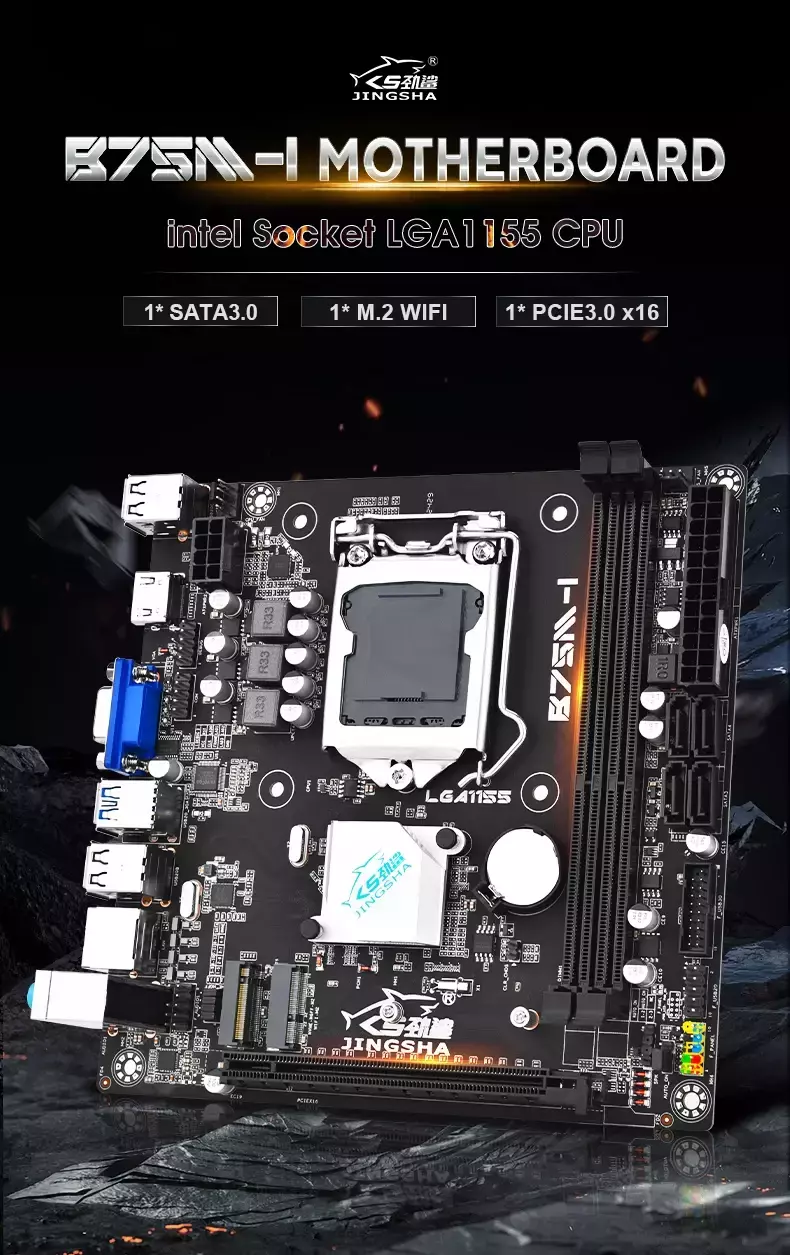

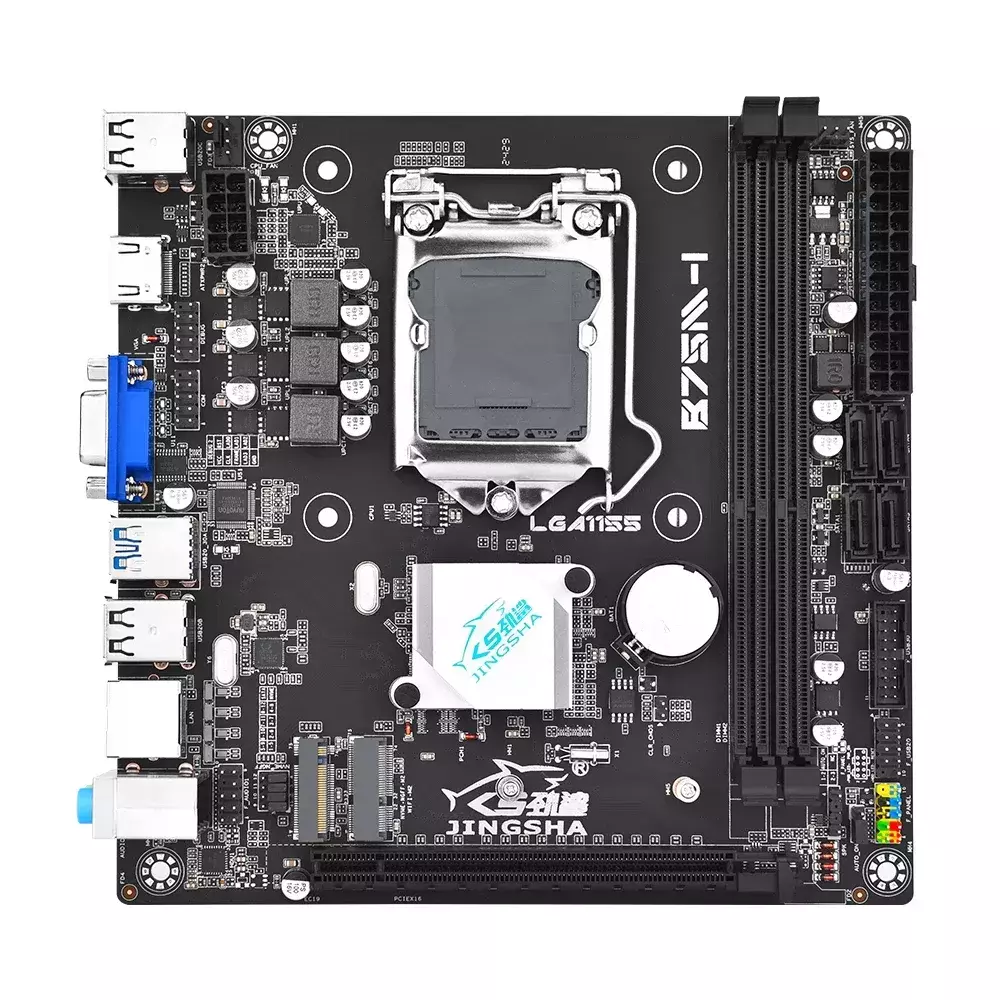

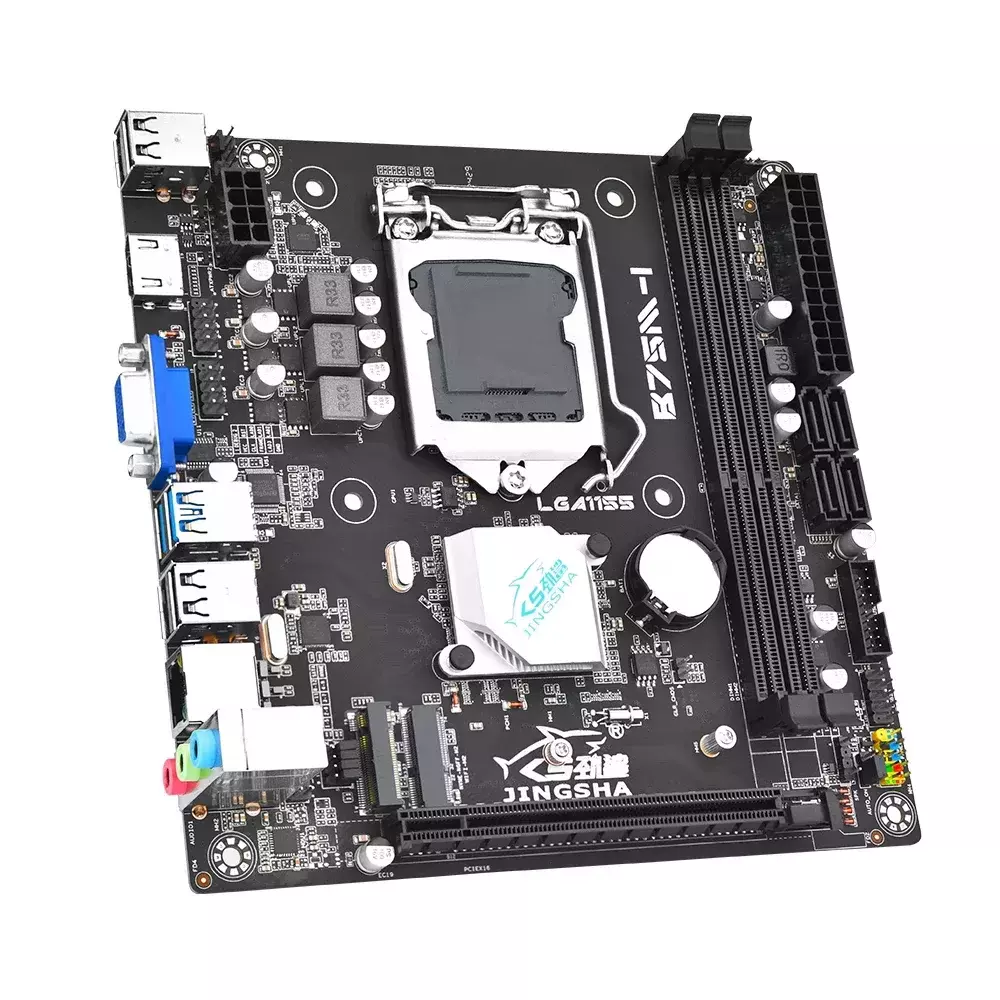

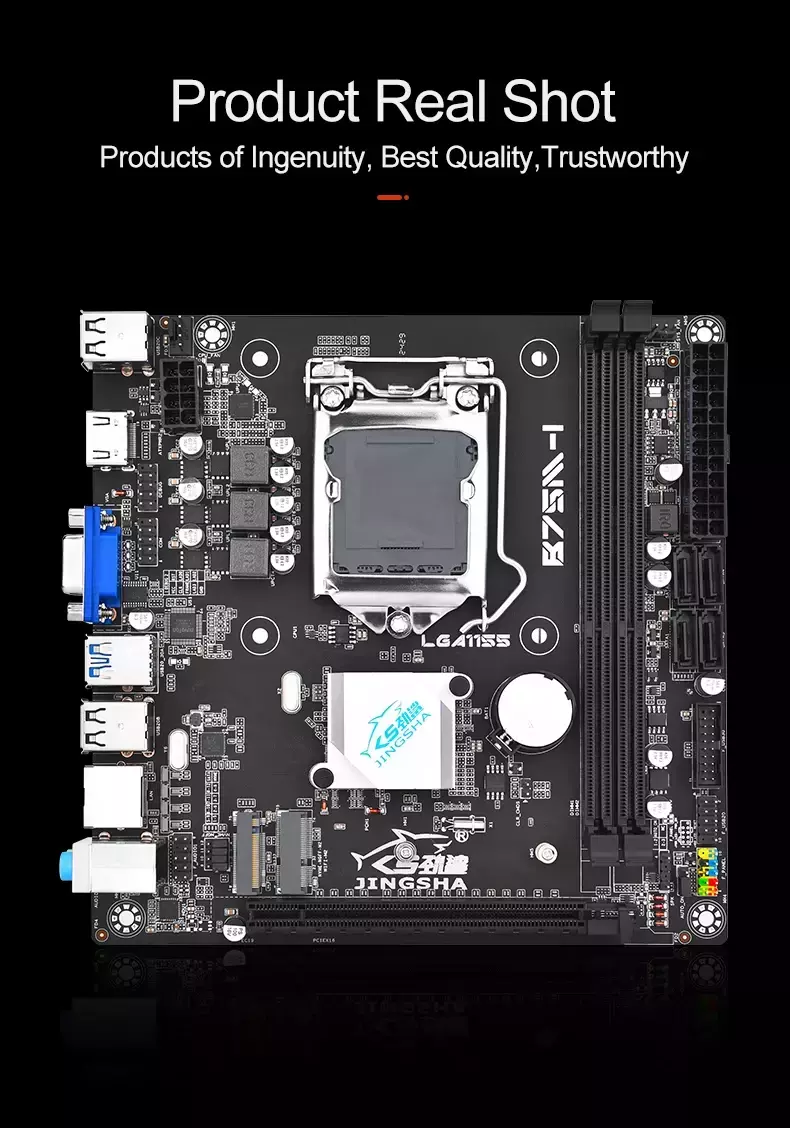

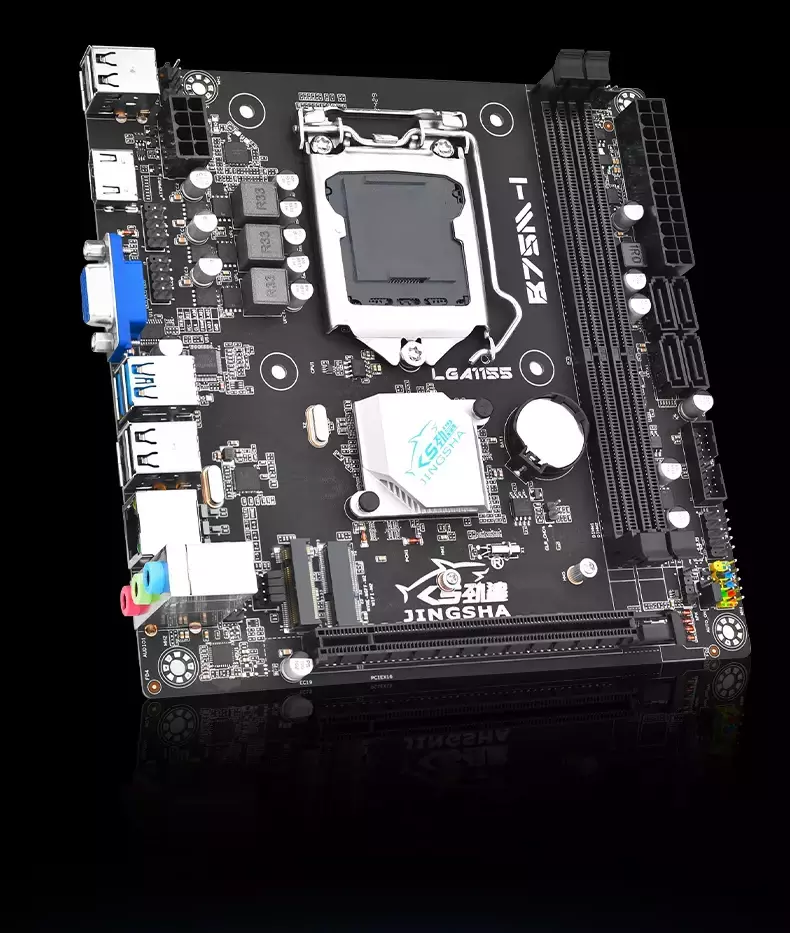

Motherboard Specification:
Brand: JINGSHA (JINGSHA and SZMZ belong to two sub brands of the same company.)
Form Factor : mini-ATX, 170MM*170MM
CPU socket : LGA 1155
Processor supported : support Pentium / Celeron / Core i3 i5 i7 , 2th 3th generation processors with socket type LGA1155 . Such as, core i3-3240 , i5-3570, i7-3770 processors
Memory socket : 2* DDR3 PC RAM 1066/1333/1600MHz
Max memory : Support Dual Channel Architecture up to 16GB
Graphic card slot : PCI-E 16X
Storage : 1* SATA3.0 , 3* SATA3.0 , 1*NVME M.2 (PCIex4 2.0 speed) or NGFF M.2 port(SATA2.0)

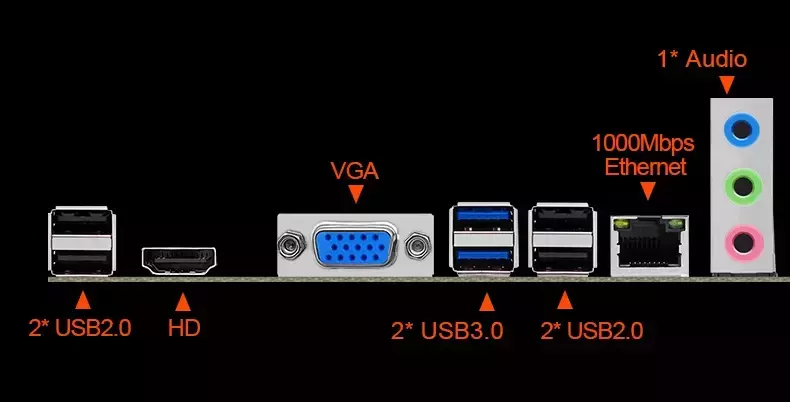

USB Ports : 6* USB2.0 , 4* USB3.0
LAN : support 1000Mbps Gigabit Ethernet
WIFI port : 1* WIFI M.2 port
Audio : Realtek Audio Codec CJC6811A .
PSU Solution : ATX 8Pin + ATX 24Pin
Accessories : 1 x I/O Shield ,1 x SATA cable
Buying instructions:
1: The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
2: Please allow 1-3mm differs due to manual measurement.
3: Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4: For tax issues , please make sure that you can solve the customs clearance issues by yourself, and we do not bear customs duties. Thanks for understanding
5: The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom
